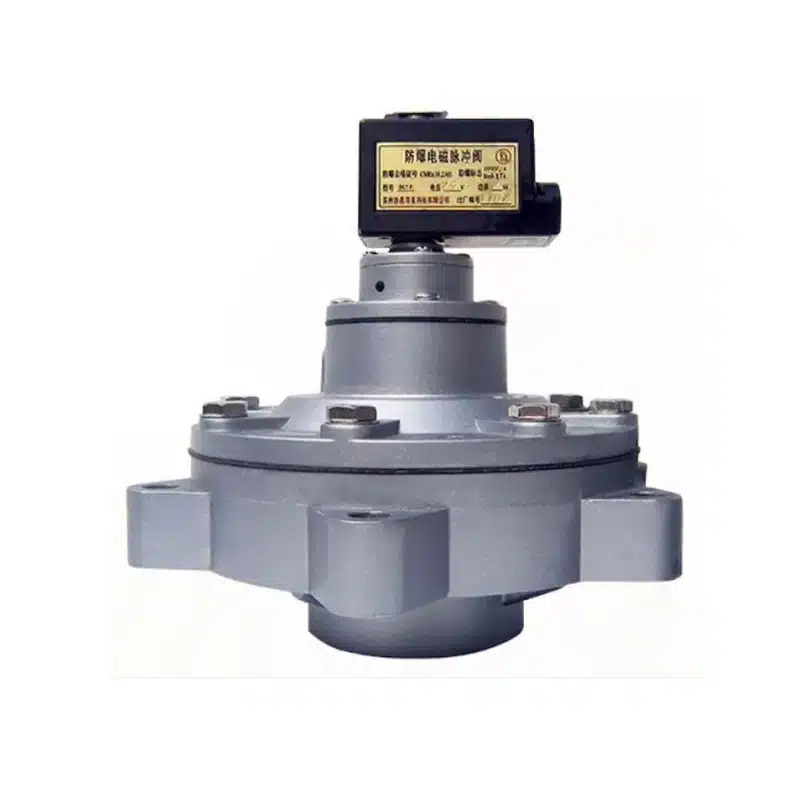

DCF-F-Y - Katup pulse Xiechang
Katup pulse explosion-proof tipe benam (immersed) untuk pembersihan baghouse aliran tinggi di lingkungan industri berbahaya.
Parameter teknis
Rangkaian model lengkap
0.2-0.6 MPa / IP65 / IECEx, CE, CCC, RoHS
| Tipe | No. model | Ukuran | Ukuran DN | Grade / catatan |
|---|---|---|---|---|
| Tipe benam | DCF-F-Y-25 | 1" | DN25 | Ex mb IIC T6 Gb |
| Tipe benam | DCF-F-Y-40S | 1.5" | DN40 | Ex mb IIC T6 Gb |
| Tipe benam | DCF-F-Y-50S | 2" | DN50 | Ex mb IIC T6 Gb |
| Tipe benam | DCF-F-Y-62S | 2.5" | DN65 | Ex mb IIC T6 Gb |
| Tipe benam | DCF-F-Y-76S | 3" | DN80 | Ex mb IIC T6 Gb |
| Tipe benam | DCF-F-Y-102S.B | 3.5" | DN90 | Ex mb IIC T6 Gb |
| Tipe benam | DCF-F-Y-102S | 4" | DN100 | Ex mb IIC T6 Gb |
| Tipe benam | DCF-F-YQ-76S | 3" | DN80 | Ex mb IIC T6 Gb |
Standar produk
Gambar teknik
🔒 Dimensi tersedia berdasarkan permintaanDCF-F-Y-62S
| Overall height | 🔒 |
|---|---|
| Flange outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Port diameter | Ø75.5 mm |
| Seat bolt circle | Ø148 mm |
| Inlet height | 35 mm |
+8 dimensi lainnya
🔒 Dimensi tersedia berdasarkan permintaanDCF-F-Y-102S
| Overall height | 🔒 |
|---|---|
| Flange outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Port diameter | Ø114 mm |
| Seat bolt circle | Ø177 mm |
| Inlet height | 35 mm |
+8 dimensi lainnya
🔒 Dimensi tersedia berdasarkan permintaanDCF-F-Y-115S
| Overall height | 217.3 mm |
|---|---|
| Flange outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Port diameter | 🔒 |
| Seat bolt circle | Ø210.2 mm |
| Inlet height | 35 mm |
+8 dimensi lainnya
🔒 Dimensi tersedia berdasarkan permintaanDCF-F-Y-25
| Overall height | 🔒 |
|---|---|
| Body diameter | 🔒 |
| Port diameter | 🔒 |
| Inlet height | 33 mm |
| Bolt circle diameter | Ø95 mm |
| Opening diameter | Ø60 mm |
+2 dimensi lainnya
🔒 Dimensi tersedia berdasarkan permintaanDCF-F-Y-40S
| Overall height | 🔒 |
|---|---|
| Flange diameter | 🔒 |
| Port diameter | Ø48 mm |
| Seat bolt circle | 🔒 |
| Inlet height | 40 mm |
| Mounting flange diameter | Ø112 mm |
+3 dimensi lainnya
🔒 Dimensi tersedia berdasarkan permintaanDCF-F-Y-50S
| Overall height | 🔒 |
|---|---|
| Flange outer diameter | Ø180 mm |
| Bolt circle diameter | 🔒 |
| Port diameter | 🔒 |
| Seat bolt circle | Ø122 mm |
| Inlet height | 30 mm |
+8 dimensi lainnya
🔒 Dimensi tersedia berdasarkan permintaanDCF-F-Y-76S(standard O-ring)
| Overall height | 200 mm |
|---|---|
| Flange outer diameter | Ø227 mm |
| Bolt circle diameter | 🔒 |
| Port diameter | Ø89.5 mm |
| Seat bolt circle | 🔒 |
| Inlet height | 🔒 |
+8 dimensi lainnya
🔒 Dimensi tersedia berdasarkan permintaanDCF-F-Y-76S(special O-ring)
| Overall height | 200 mm |
|---|---|
| Flange outer diameter | 🔒 |
| Bolt circle diameter | 🔒 |
| Port diameter | 🔒 |
| Seat bolt circle | Ø174.6 mm |
| Inlet height | 35 mm |
+8 dimensi lainnya
🔒 Dimensi tersedia berdasarkan permintaanDMY-F-II-80
| Overall height | 187 mm |
|---|---|
| Air pocket pipe diameter | 🔒 |
| Spray pipe diameter | 🔒 |
| Spray pipe inner diameter | 🔒 |
| Flange outer diameter | Ø224 mm |
| Flange bolt circle | Ø198 mm |
+6 dimensi lainnya
Basis pengetahuan
Pipa semprot (blowpipe) menembus dari bagian bawah tangki udara; sambungkan ulir sisi masuk ke tangki dan kencangkan searah jarum jam; arah koil dapat disetel.
Dari 1" (DCF-F2-Y-25) hingga 4.5" (DCF-F2-Y-115S), plus DMY-F2-II-80, dengan opsi bodi 304 / 316 / rendah tembaga-seng.
Dari 1" (DCF-F3-Y-25) hingga 4.5" (DCF-F3-Y-115S), plus DMY-F3-II-80, dengan opsi bodi 304 / 316 / rendah tembaga-seng.
