Seri benam (immersed) Watson® WPS-CA

Katup pulse benam (immersed)

Katup pulse benam (immersed) Watson® ditanam di dalam header udara untuk mengurangi kehilangan tekanan dan menyalurkan pulse pembersih yang kuat langsung ke kantong filter baghouse. Rentang benam WPS-CA mencakup model DN25 hingga DN115 dengan sertifikasi CE, CCC, RoHS, dan perlindungan IP65.

Lihat rentang model benam Minta penawaran

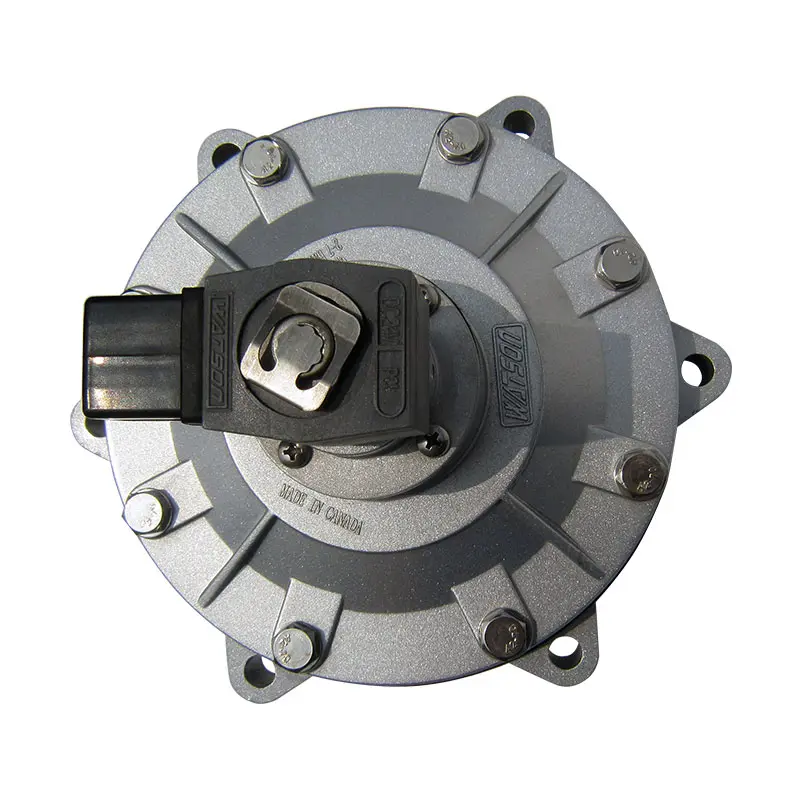

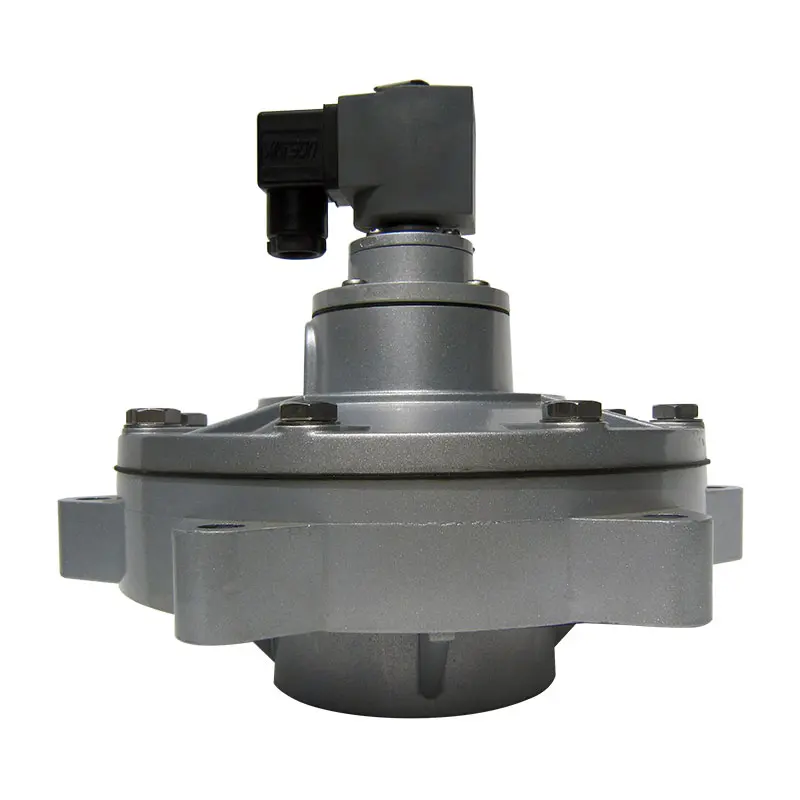

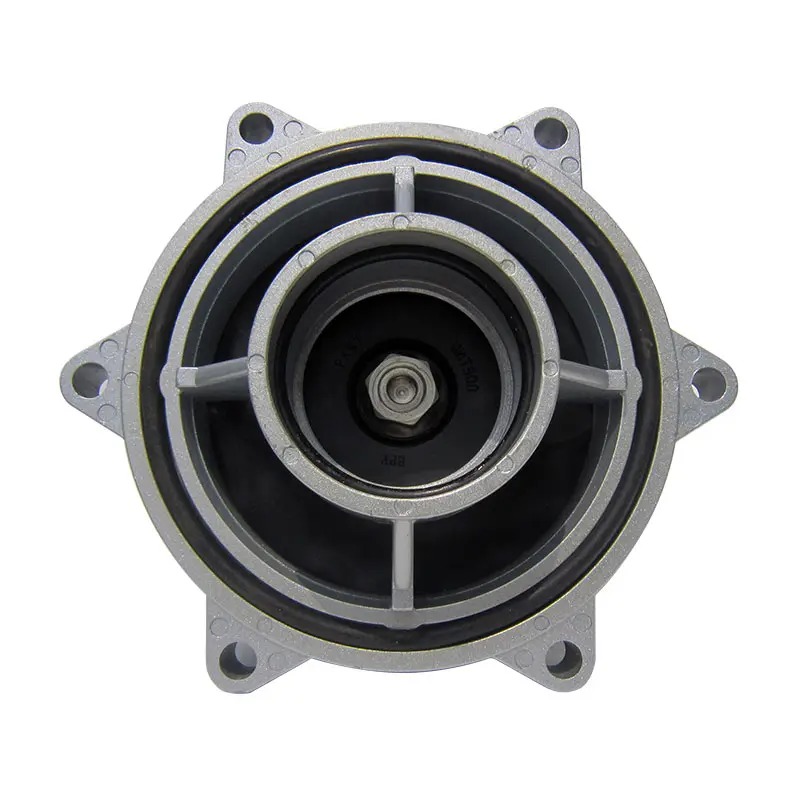

Pemasok katup pulse benam (immersed) Watson®

Spesifikasi operasi universal

Kondisi operasi untuk seluruh rangkaian WPS-CA.

Working Pressure0.2-0.6 MPa (2-6 bar)

MediumClean, dry compressed air

Working VoltageDC24V, AC220V/50Hz to AC240V/60Hz

Protection ClassIP65 waterproof and dustproof

EnvironmentTemperature −40°C to 120°C; humidity ≤ 85%

Rangkaian model lengkap

Model katup pulse benam (immersed) Watson® WPS-CA.

Tekanan kerja 0.2-0.6 MPa · udara bertekanan bersih dan kering · DC24V atau AC220V/50Hz-AC240V/60Hz · IP65 · tersertifikasi CE / CCC / RoHS

Tipe	No. model	Ukuran (inci)	Ukuran DN	Kelas Ex-proof
Benam (immersed)	WPS-CA/EG25	1″	DN25	Diafragma tunggal
Benam (immersed)	WPS-CA/EG40	1½″	DN40	Diafragma tunggal
Benam (immersed)	WPS-CA/EP50	2″	DN50	Diafragma ganda
Benam (immersed)	WPS-CA/EP62	2½″	DN65	Diafragma ganda
Benam (immersed)	WPS-CA/EP76	3″	DN80	Diafragma ganda
Benam (immersed)	WPS-CA/EP102.B	3.5″	DN90	Diafragma ganda
Benam (immersed)	WPS-CA/EP102	4″	DN100	Diafragma ganda
Benam (immersed)	WPS-CA/EP115	4½″	DN115	Diafragma ganda

Standar produk

Keunggulan katup pulse benam (immersed) Watson®.

SertifikasiCE, CCC, RoHS

Tingkat perlindungan (IP)IP65

Struktur benamStruktur benam menempatkan badan katup di dalam header udara untuk mengurangi penurunan tekanan dan meningkatkan intensitas pulse.

DiafragmaDiafragma premium Watson® mendukung masa pakai panjang pada sistem pembersihan baghouse industri beban tinggi.

AplikasiSesuai untuk proyek perawatan, penggantian, dan peningkatan yang membutuhkan katup pulse benam Watson® yang andal.

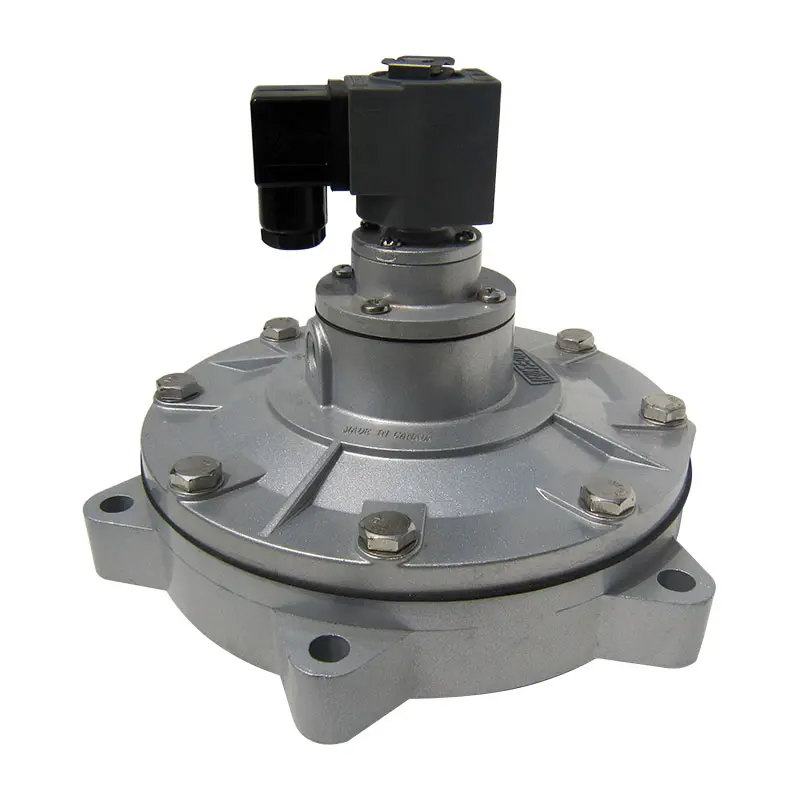

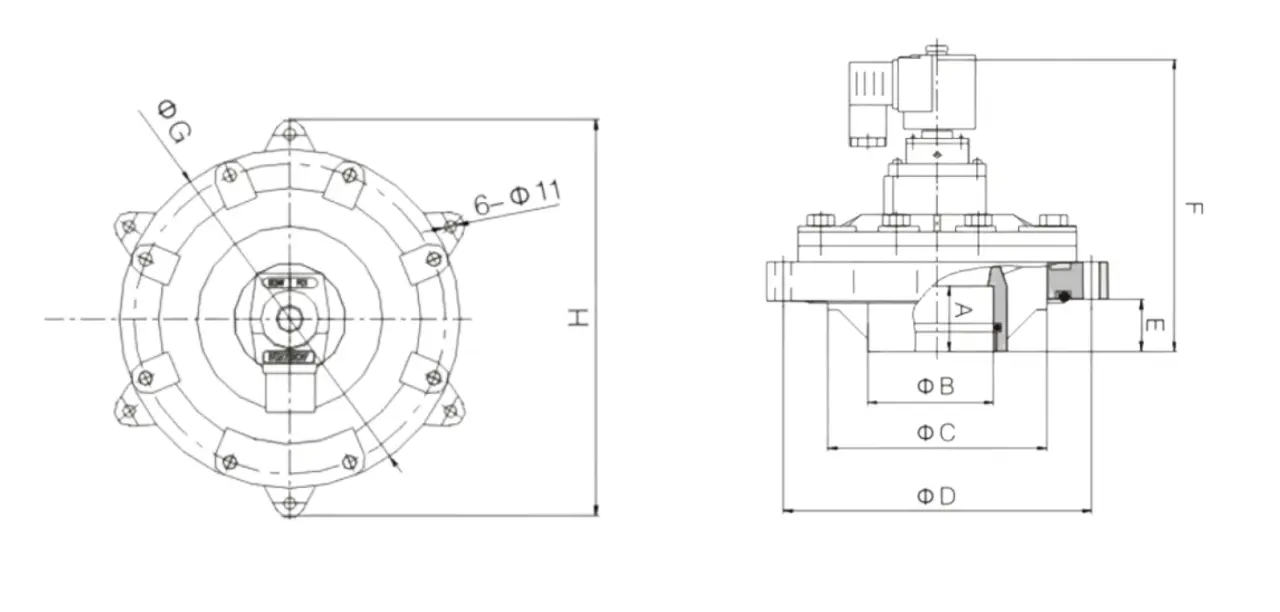

Gambar teknik

Overall length (valve)	🔒
Diaphragm cover flange OD	Ø227 [8.94]
Inner bolt/ring diameter	🔒
Diaphragm bore	🔒
Cover thickness / lip	7 [0.26]
Solenoid/pilot boss offset	27 [1.06]

Overall length (valve)	217.3 [8.554]
Diaphragm cover flange OD	Ø239 [9.41]
Inner ring diameter	🔒
Diaphragm ring ø	Ø202.2 [7.961]
Diaphragm bore	🔒
Cover/top boss offset	🔒

Overall length (valve)	188 [7.4]
Mounting flange OD	Ø180 [7.09]
Ring ø	Ø130 [5.12]
Diaphragm/seat ø	🔒
Seat bore ø (tol)	🔒
Cover/top boss offset	🔒

Overall length (valve)	196 [7.72]
Mounting flange OD	Ø208 [8.19]
Ring ø	🔒
Diaphragm ø	🔒
Seat bore ø (tol)	🔒
Cover/top boss offset	7 [0.28]

Overall height (valve incl. solenoid)	200 [7.87]
Diaphragm cover flange OD	🔒
Ring ø	Ø174.6 [6.84]
Inner ring ø	Ø160 [6.3]
Seat/diaphragm bore ø	🔒
Cover/side boss offset	🔒

Overall length (valve)	140 [5.51]
Inlet flange/hub OD	Ø59 [2.32]
Port bore ø	🔒
Thread	G1"
Top boss offset	🔒
Mounting flange face to body	🔒

Overall length (valve)	184 [7.24]
Inlet flange/hub OD	Ø73 [2.87]
Port bore ø	🔒
Thread (inlet)	G1-1/2"
Top boss offset	🔒
Mounting flange face to body	🔒

Overall outer / mounting flange OD	Φ490 [Φ19.29]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ435 [Φ17.13]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Overall outer / mounting flange OD	Φ600 [Φ23.62]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ512 [Φ20.16]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Overall outer / mounting flange OD	Φ730 [Φ28.74]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ616 [Φ24.25]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Overall outer / mounting flange OD	Φ842 [Φ33.15]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ716 [Φ28.19]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Overall outer / mounting flange OD	Φ940 [Φ37.01]
Bolt-circle diameter (bcd)	🔒
Inner opening / port diameter	Φ806 [Φ31.73]
Diaphragm / spring seat diameter (bolt pattern *10)	🔒
Bolt holes	🔒
Flange thickness (top)	20 [0.79]

Katup pulse benam (immersed)

Kondisi operasi untuk seluruh rangkaian WPS-CA.

Model katup pulse benam (immersed) Watson® WPS-CA.

Keunggulan katup pulse benam (immersed) Watson®.

Dimensi pemasangan untuk produk ini.

WPS-CA/EP102 · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EP102.B · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EP102.B · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EP115 · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EP50 · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EP62 · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EP76 · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EP76 · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EG25 · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EG40 · katup tipe benam (immersed) — Gambar Pemasangan

WPS-CA/EP200 · 8 inci · katup besar tekanan ultra-rendah — Gambar Pemasangan

WPS-CA/EP250 · 10 inci · katup besar tekanan ultra-rendah — Gambar Pemasangan

WPS-CA/EP300 · 12 inci · katup besar tekanan ultra-rendah — Gambar Pemasangan

WPS-CA/EP350 · 14 inci · katup besar tekanan ultra-rendah — Gambar Pemasangan

WPS-CA/EP400 · 16 inci · katup besar tekanan ultra-rendah — Gambar Pemasangan
