Ringkasan singkat seri produk — rangkuman 97 SKU

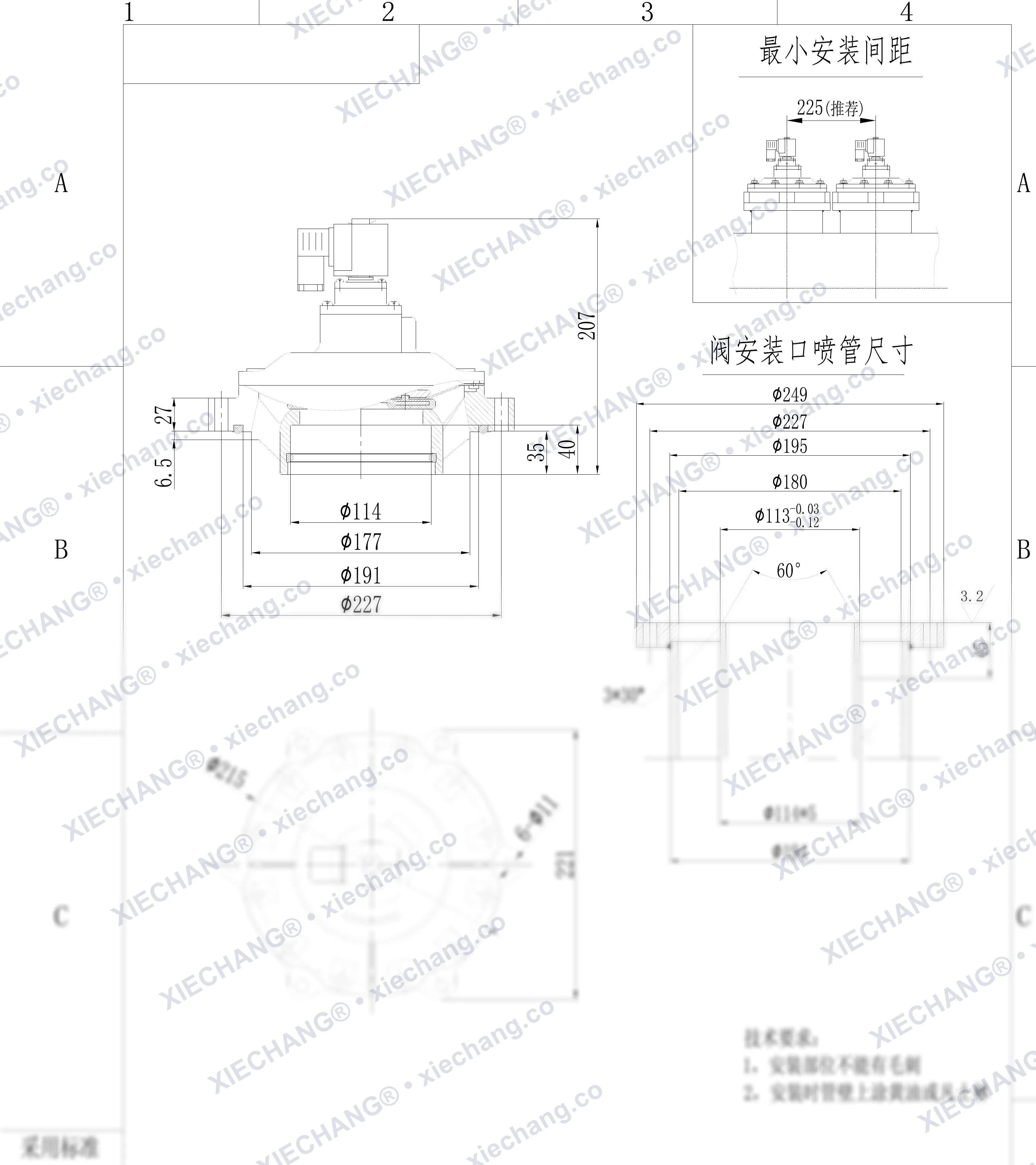

Katup pulse seri lengkap

Lima lini produk inti yang mencakup setiap kelas kekedapan gas dan ukuran port yang kami produksi — dari katup Ex mb encapsulated hingga unit ultra-besar DN400 yang dipasang pada tangki. Gunakan halaman ini sebagai lembar spesifikasi utama saat mencocokkan nomor model dengan baghouse Anda.

Telusuri tabel SKUMinta penawaran

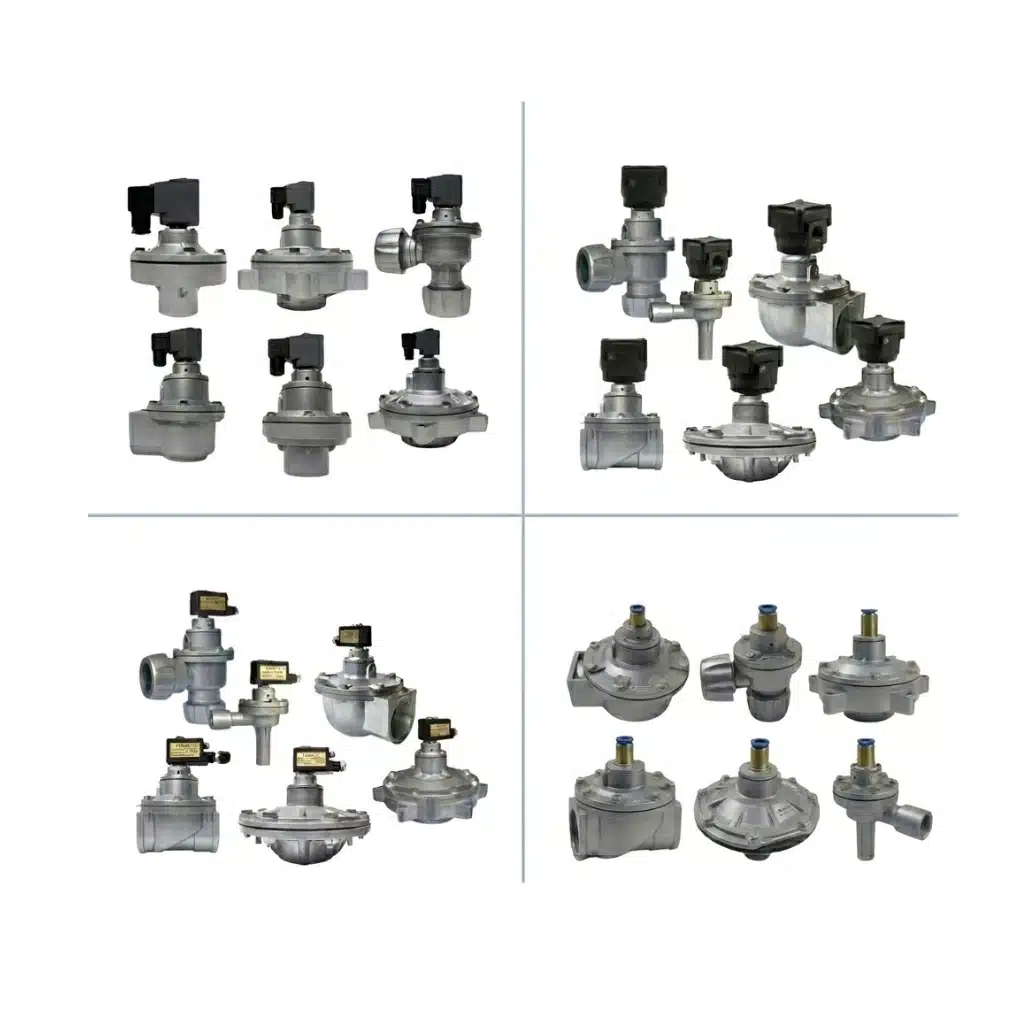

Katup pulse Xiechang® seri lengkap — foto produk utama
01

Encapsulated

Ex mb Series

High-level gas explosion-proof requirements

23 models02

Flameproof

Ex db Series

Most rigorous hazardous-area installations

23 models03

Pneumatic

Air-Operated

Purely air-triggered, zero electrical fire risk

23 models04

Standard

Industrial

Universal industrial classic, best cost-efficiency

23 models05

Large Scale

Ultra-Large Ports

Ultra-high-flow tanks up to DN400 / 16″

5 models

Kondisi operasi umum

One envelope, four standard-pressure series.

Environment Temp−34°C to 200°C
Working Pressure0.05–0.1 MPa, 0.2–0.6 MPa (incl. low-pressure series)
Size Range3/4″ (DN20) to 16″ (DN400)
Ex-proof RatingGas IIC and Dust explosion-proof
Applied MaterialsAluminum alloy; stainless steel (customized)

Lembar spesifikasi lengkap

97 SKU, menurut seri.

1. Encapsulated Pulse Valves

Ex mb Series

0.2–0.6 MPa · −20–80°C / −19–200°C (standard diaphragm) · −34–100°C / −19–200°C (premium diaphragm)

TipeNo. modelUkuran (inci)Spesifikasi (metrik)Kondisi / Keterangan
Right-AngleDCF-F-Z-203/4″DN20Ex mb IIC T6 Gb
Right-AngleDCF-F-Z-251″DN25Ex mb IIC T6 Gb
Right-AngleDCF-F-Z-40S1.5″DN40Ex mb IIC T6 Gb
Right-AngleDCF-F-Z-50S2″DN50Ex mb IIC T6 Gb
Right-AngleDCF-F-Z-62S2.5″DN65Ex mb IIC T6 Gb
Right-AngleDCF-F-Z-76S3″DN80Ex mb IIC T6 Gb
Right-AngleDCF-F-Z-102S4″DN100Ex mb IIC T6 Gb
SubmergedDCF-F-Y-251″DN25Ex mb IIC T6 Gb
SubmergedDCF-F-Y-40S1.5″DN40Ex mb IIC T6 Gb
SubmergedDCF-F-Y-50S2″DN50Ex mb IIC T6 Gb
SubmergedDCF-F-Y-62S2.5″DN65Ex mb IIC T6 Gb
SubmergedDCF-F-Y-76S3″DN80Ex mb IIC T6 Gb
SubmergedDCF-F-Y-102S4″DN100Ex mb IIC T6 Gb
Male ThreadDCF-F-ZM-203/4″DN20Ex mb IIC T6 Gb
Male ThreadDCF-F-ZM-251″DN25Ex mb IIC T6 Gb
Male ThreadDCF-F-ZM-40S1.5″DN40Ex mb IIC T6 Gb
StraightDCF-F-T-25S1″DN25Ex mb IIC T6 Gb
StraightDCF-F-T-40S1.5″DN40Ex mb IIC T6 Gb
StraightDCF-F-T-50S2″DN50Ex mb IIC T6 Gb
Right-AngleDCF-F-2L-B3/4″DN20Double Diaphragm
SubmergedDCF-F-YQ-76S3″DN80Low Pressure Type
SpecialDMY-F-II-803″DN80Reinforced Version
Right-AngleDCF-F-Z-25S1″DN25High Frequency Version

2. Flameproof Pulse Valves

Ex db Series

0.2–0.6 MPa · −20–80°C / −19–200°C (standard diaphragm) · −34–100°C / −19–200°C (premium diaphragm)

TipeNo. modelUkuran (inci)Spesifikasi (metrik)Kondisi / Keterangan
Right-AngleDCF-F2-Z-203/4″DN20Ex db IIC T6 Gb
Right-AngleDCF-F2-Z-251″DN25Ex db IIC T6 Gb
Right-AngleDCF-F2-Z-40S1.5″DN40Ex db IIC T6 Gb
Right-AngleDCF-F2-Z-50S2″DN50Ex db IIC T6 Gb
Right-AngleDCF-F2-Z-62S2.5″DN65Ex db IIC T6 Gb
Right-AngleDCF-F2-Z-76S3″DN80Ex db IIC T6 Gb
Right-AngleDCF-F2-Z-102S4″DN100Ex db IIC T6 Gb
SubmergedDCF-F2-Y-251″DN25Ex db IIC T6 Gb
SubmergedDCF-F2-Y-40S1.5″DN40Ex db IIC T6 Gb
SubmergedDCF-F2-Y-50S2″DN50Ex db IIC T6 Gb
SubmergedDCF-F2-Y-62S2.5″DN65Ex db IIC T6 Gb
SubmergedDCF-F2-Y-76S3″DN80Ex db IIC T6 Gb
SubmergedDCF-F2-Y-102S4″DN100Ex db IIC T6 Gb
Male ThreadDCF-F2-ZM-203/4″DN20Ex db IIC T6 Gb
Male ThreadDCF-F2-ZM-251″DN25Ex db IIC T6 Gb
Male ThreadDCF-F2-ZM-40S1.5″DN40Ex db IIC T6 Gb
StraightDCF-F2-T-25S1″DN25Ex db IIC T6 Gb
StraightDCF-F2-T-40S1.5″DN40Ex db IIC T6 Gb
StraightDCF-F2-T-50S2″DN50Ex db IIC T6 Gb
Right-AngleDCF-F2-2L-B3/4″DN20High Reliability
SubmergedDCF-F2-YQ-76S3″DN80Hazardous Dust Environments
SpecialDMY-F2-II-803″DN80Custom Explosion-proof
Right-AngleDCF-F2-Z-102S.B3.5″DN90Ex db IIC T6 Gb

3. Pneumatic Pulse Valves

Air-Operated

0.2–0.6 MPa · −20–80°C / −19–200°C (standard diaphragm) · −34–100°C / −19–200°C (premium diaphragm)

TipeNo. modelUkuran (inci)Spesifikasi (metrik)Kondisi / Keterangan
SubmergedDCF-Y-25-DXK1″DN25No Electricity Required
SubmergedDCF-Y-40S-DXK1.5″DN40No Electricity Required
SubmergedDCF-Y-50S-DXK2″DN50No Electricity Required
SubmergedDCF-Y-62S-DXK2.5″DN65No Electricity Required
SubmergedDCF-Y-76S-DXK3″DN80No Electricity Required
SubmergedDCF-Y-102S-DXK4″DN100No Electricity Required
Right-AngleDCF-Z-20-DXK3/4″DN20No Electricity Required
Right-AngleDCF-Z-25-DXK1″DN25No Electricity Required
Right-AngleDCF-Z-40S-DXK1.5″DN40No Electricity Required
Right-AngleDCF-Z-50S-DXK2″DN50No Electricity Required
Right-AngleDCF-Z-62S-DXK2.5″DN65No Electricity Required
Right-AngleDCF-Z-76S-DXK3″DN80No Electricity Required
Right-AngleDCF-Z-102S-DXK4″DN100No Electricity Required
Male ThreadDCF-ZM-20-DXK3/4″DN20Pneumatic Trigger
Male ThreadDCF-ZM-25-DXK1″DN25Pneumatic Trigger
Male ThreadDCF-ZM-40S-DXK1.5″DN40Pneumatic Trigger
StraightDCF-T-25S-DXK1″DN25Pneumatic Trigger
StraightDCF-T-40S-DXK1.5″DN40Pneumatic Trigger
StraightDCF-T-50S-DXK2″DN50Pneumatic Trigger
Right-AngleDCF-2L-B-DXK3/4″DN20Pneumatic Control
SubmergedDCF-YQ-76S-DXK3″DN80Pneumatic Control
SpecialDMY-II-80-DXK3″DN80Reinforced Pneumatic
Right-AngleDCF-Z-25S-DXK1″DN25High Frequency Pneumatic

4. Standard Series Pulse Valves

Industrial

0.2–0.6 MPa · −20–80°C / −19–200°C (standard diaphragm) · −34–100°C / −19–200°C (premium diaphragm)

TipeNo. modelUkuran (inci)Spesifikasi (metrik)Kondisi / Keterangan
Right-AngleDCF-Z-203/4″DN20Standard Industrial
Right-AngleDCF-Z-251″DN25Standard Industrial
Right-AngleDCF-Z-40S1.5″DN40Standard Industrial
Right-AngleDCF-Z-50S2″DN50Standard Industrial
Right-AngleDCF-Z-62S2.5″DN65Standard Industrial
Right-AngleDCF-Z-76S3″DN80Standard Industrial
Right-AngleDCF-Z-102S4″DN100Standard Industrial
SubmergedDCF-Y-251″DN25Standard Industrial
SubmergedDCF-Y-40S1.5″DN40Standard Industrial
SubmergedDCF-Y-50S2″DN50Standard Industrial
SubmergedDCF-Y-62S2.5″DN65Standard Industrial
SubmergedDCF-Y-76S3″DN80Standard Industrial
SubmergedDCF-Y-102S4″DN100Standard Industrial
Male ThreadDCF-ZM-203/4″DN20Standard Industrial
Male ThreadDCF-ZM-251″DN25Standard Industrial
Male ThreadDCF-ZM-40S1.5″DN40Standard Industrial
StraightDCF-T-25S1″DN25Standard Industrial
StraightDCF-T-40S1.5″DN40Standard Industrial
StraightDCF-T-50S2″DN50Standard Industrial
Right-AngleDCF-2L-B3/4″DN20Classic Model
SubmergedDCF-YQ-76S3″DN80Low Pressure Type
SpecialDMY-II-803″DN80Universal Reinforced
Right-AngleDCF-Z-25S1″DN25Classic Enhanced

5. Large Scale Series

Ultra-Large Ports

0.05–0.1 MPa · −25°C to 100°C continuous, 120°C transient/peak

TipeNo. modelUkuran (inci)Spesifikasi (metrik)Kondisi / Keterangan
SubmergedDMY-III-200C8″DN200For Ultra-High Flow Tanks
SubmergedDMY-III-250C10″DN250For Ultra-High Flow Tanks
SubmergedDMY-III-300C12″DN300For Ultra-High Flow Tanks
SubmergedDMY-III-350C14″DN350For Ultra-High Flow Tanks
SubmergedDMY-III-400C16″DN400For Ultra-High Flow Tanks
